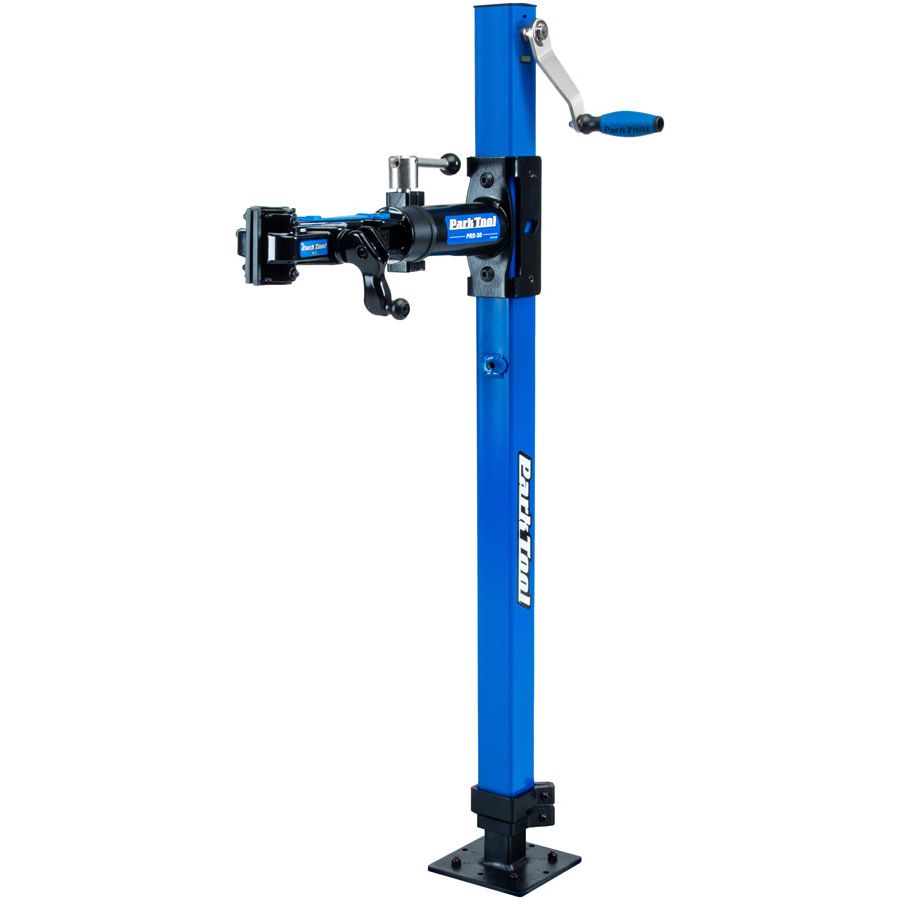

The PRS-30 solves one of the biggest challenges of e-bike maintenance, repair, and cleaning: getting it off the ground. With a footprint no larger than a traditional bicycle repair stand, the PRS-30 easily lifts and lowers bikes up to 120 lbs. (54 kg) with ease. The professional-grade clamp lowers to a height of 29" (74 cm), allowing you to clamp onto the seatpost or seat tube of most bicycles without needing to lift them into the stand. From there, the PRS-30 features 23" (58 cm) of height adjustment, elevating the bike to a comfortable position for removing wheels, tuning the drivetrain, cleaning the chain, or any other procedure. Height adjustment is accomplished using an internally-geared mechanism driven by a simple hand crank. Height can also be adjusted using a common battery-operated drill with 10 mm socket for truly effortless lifting of heavy bicycles. Built to the same standards as our legendary professional repair stands, the PRS-30 is built from all-steel components and powder coated for a lifetime of use. The PRS-30LB does not include legs or a base plate. It can be mounted to a #130 Repair Stand Base or directly to the floor using the FP-2 Floor Plate (both sold separately).
- Maximum weight capacity is 54 kg (120 lbs)
- Clamp capacity for round and aero tubes from 23 to 76 mm (7/8" to 3") wide
- Adjustable clamp height from 74 to 132 cm (29" to 52"), with an option to install 10 cm (4") lower for a range of 64 to 122 cm (25" to 48")
- Full stand height at maximum adjustment is 157 cm (62"), with replaceable jaw covers (part #1960), and can be installed onto the #130 Repair Stand Base or bolted directly to the floor using the FP-2 Floor Plate (both sold separately)
Product Specifications
Check all technical specifications
